Application of composite materials in mechanical engineering for lighter, stronger systems
The application of composite materials in mechanical engineering is driven by a practical requirement: combining low weight, high specific strength, stiffness, corrosion resistance, and design flexibility in ways that conventional metals cannot always match. Composites are not universal replacements for steel, aluminum, or titanium. They make the most sense when the load path is understood, weight reduction has measurable value, and the part can be manufactured, inspected, and repaired under reliable process control. In mechanical systems, they are used in vehicle structures, aircraft parts, wind turbine blades, pressure vessels, robotic arms, machine guards, springs, shafts, panels, and wear-resistant components. For more materials-focused engineering topics, see our applications section.
What composite materials mean in mechanical engineering
A composite material combines two or more distinct constituents so the finished material performs differently from each individual component. In mechanical engineering, the most common examples are fiber-reinforced polymer composites, where glass, carbon, aramid, or natural fibers carry much of the load while a polymer matrix transfers stress, protects the fibers, and holds the part shape.
The engineering value lies in tailoring. A metal plate is often treated as having broadly uniform properties in all in-plane directions. A laminated composite can be designed with fibers running along the primary load path, across secondary loads, or at selected angles to resist torsion and shear. This is why a composite part may outperform a metal part in specific strength or specific stiffness, even if its absolute strength is not higher in every direction.
Common mechanical-engineering composite families include glass fiber reinforced polymers for cost-sensitive structures, carbon fiber reinforced polymers for high stiffness-to-weight applications, aramid composites for impact and abrasion resistance, ceramic matrix composites for high-temperature environments, and metal matrix composites for wear, thermal, or stiffness requirements. The right choice depends on load, temperature, environment, production volume, inspection method, and end-of-life plan.
Where composites create measurable engineering value
Composites are most persuasive when they solve a defined mechanical problem, not when they are chosen simply because they are advanced materials. The strongest business case usually appears in systems where lower mass reduces energy use, improves payload, increases motion efficiency, or allows a smaller supporting structure.
| Application area | Typical composite choice | Main engineering benefit | Important limitation |
|---|---|---|---|
| Automotive body, chassis and closures | Glass or carbon fiber polymer composites | Weight reduction, corrosion resistance and design integration | Cycle time, cost and joining with metals |
| Aerospace structures | Carbon fiber reinforced polymer | High stiffness-to-weight ratio and fatigue resistance in selected structures | Certification, damage detection and repair complexity |
| Wind turbine blades | Glass fiber reinforced epoxy, hybrid glass/carbon systems | Long, lightweight structures with tailored stiffness | End-of-life recycling and blade repair |
| Robotics and automation | Carbon fiber tubes, plates and molded arms | Lower inertia, faster movement and improved positional response | Cost, anisotropic design and impact sensitivity |
| Pressure vessels and tanks | Filament-wound glass or carbon fiber composites | Fiber alignment around hoop and axial stresses | Permeation, damage tolerance and qualification testing |
| Machine components | Fiber-reinforced polymers or polymer composites with fillers | Damping, low mass, wear resistance or corrosion resistance | Temperature limits and creep under sustained load |
In vehicles, the U.S. Department of Energy has reported that reducing vehicle weight by 10% can improve fuel economy by about 6% to 8%. It also identifies carbon fiber and polymer composites among the lightweight materials used to reduce body and chassis mass. (energy.gov) This does not mean every vehicle component should be made from composites. It means lightweighting has system-level value when material cost, manufacturing rate, crash performance, and durability can be justified.
Major applications in mechanical systems
Transportation and aerospace structures
Transportation is one of the clearest fields for composite adoption because mass affects acceleration, braking, fuel consumption, battery range, and payload. In road vehicles, composites are used selectively in body panels, leaf springs, underbody shields, seat structures, battery enclosures, and performance components. Glass fiber systems remain common where cost matters, while carbon fiber is used where stiffness and weight saving justify the premium.

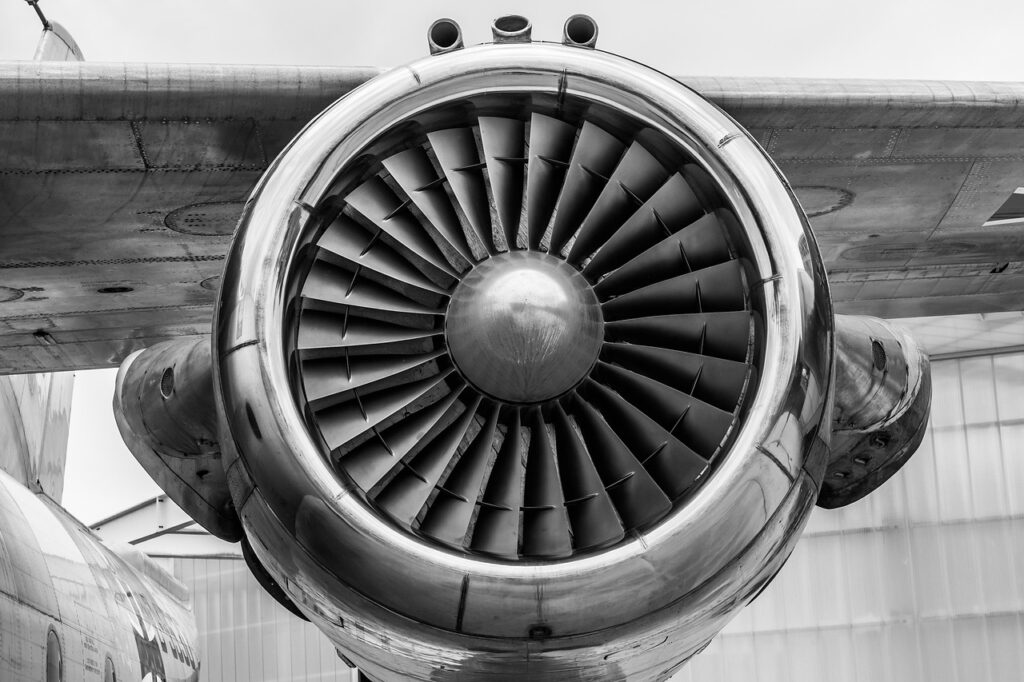

Aerospace applications show how composites can move from secondary parts into primary load-bearing structures. NASA technical material on composite development notes that the Boeing 787 uses composites for about 50% of its structural weight and contains large quantities of carbon fiber reinforced plastic. (ntrs.nasa.gov) The lesson for general mechanical engineering is not that aircraft practice transfers directly to industrial machinery. It is that composites become practical when design allowables, inspection procedures, manufacturing repeatability, and certification logic mature together.
Wind energy and large rotating structures
Wind turbine blades are a mechanical-engineering case study in long-span composite structures. Blades require stiffness, fatigue resistance, controlled mass distribution, and aerodynamic shaping. NREL has described existing blade designs as being made primarily from epoxy-based glass-fiber-reinforced composites and balsa wood, while also emphasizing the importance of recovering and recycling glass fibers from blades. (docs.nrel.gov)
For engineers, wind blades show both sides of composite adoption. The material enables long, efficient blades that would be difficult to manufacture from conventional metals at similar mass. At the same time, thermoset matrices, bonded joints, lightning protection, erosion, transport logistics, and end-of-life processing create design constraints that need attention early in the project.
Robotics, automation and moving machine parts
Robotics benefits from composites because lower moving mass reduces inertia. A lighter arm, gantry, or end effector can improve acceleration, reduce motor load, and shorten settling time. Carbon fiber tubes and sandwich panels are often used in high-speed pick-and-place systems, inspection equipment, drones, and precision automation frames.
A 2026 systematic review in the Journal of Field Robotics described composites as enabling lightweight, resistant, and multifunctional robotic structures, while also pointing to bio-based materials, multimaterial additive manufacturing, and adaptive systems as future directions. (onlinelibrary.wiley.com) In practical machinery, however, stiffness, damping, thermal expansion, and connection details matter as much as headline tensile strength. A poorly designed metal insert or bolted joint can remove much of the weight-saving advantage.
Pressure containment, piping and corrosion-resistant equipment
Composite pressure vessels and pipes use fiber orientation to carry hoop and axial loads efficiently. Filament winding is especially suitable because fibers can be placed around a mandrel at controlled angles. This approach is common in compressed gas cylinders, water treatment vessels, chemical piping, fuel storage concepts, and some hydrogen-related applications.
The attraction is not only low mass. Polymer composite systems can resist many corrosive environments better than unprotected metals. However, pressure containment is a safety-critical application. Engineers must account for permeation, liner compatibility, impact damage, cyclic pressure, temperature exposure, fire behavior, and code compliance. Composite vessels should be treated as engineered systems, not simply as lighter versions of steel tanks.
How composites change mechanical design practice
Composite design is different because properties depend on fiber type, matrix, fiber volume fraction, layup, void content, cure quality, environmental exposure, and loading direction. A laminate may be very strong along the fiber direction but much weaker through thickness or under interlaminar shear. That anisotropy is an advantage only when it is deliberately designed into the part.
- Load path comes first. Fiber directions should follow tensile, bending, torsional, and shear loads rather than only the external part geometry.
- Joints need special attention. Bolts, rivets, inserts, and bonded joints introduce local stress concentrations, peel stress, and possible delamination.
- Damage modes differ from metals. Instead of yielding visibly, composites can develop matrix cracking, fiber breakage, delamination, or barely visible impact damage.
- Temperature and moisture matter. Polymer matrices can lose stiffness near service-temperature limits, absorb moisture, or degrade under ultraviolet and chemical exposure.
- Inspection must be planned. Ultrasonic testing, tap testing, thermography, or other methods may be needed depending on part criticality.
Testing standards are central because small process changes can shift performance. ASTM D3039/D3039M, for example, covers tensile properties of polymer matrix composite materials and identifies factors such as layup, stacking sequence, specimen conditioning, alignment, test speed, void content, and reinforcement volume as items that influence tensile response. (store.astm.org) This is why published fiber strength alone is not enough for engineering qualification.
Manufacturing routes and process limits
The application of composites in mechanical engineering is closely tied to the manufacturing method. Hand layup, spray-up, resin transfer molding, compression molding, pultrusion, filament winding, prepreg layup, automated fiber placement, and additive manufacturing all produce different economics and different levels of material consistency. See also: Materials.
Hand layup is flexible and suitable for low-volume parts, but it is labor intensive and more variable than automated routes. Resin transfer molding and compression molding can support higher repeatability, although tooling cost and process development are significant. Pultrusion is efficient for constant cross-section profiles such as rods, beams, and channels. Filament winding is highly effective for tubes and pressure vessels. Prepreg and autoclave processing can deliver high performance but may be too expensive for many industrial machine components.
Additive manufacturing adds another route for composite design, especially for prototypes, fixtures, and complex forms. NIST has described work on additive manufacturing of composites aimed at understanding material properties and developing metrology tools and measurement standards. (nist.gov) For production engineers, the point is clear: printed composite parts should not be accepted on geometry alone. Fiber orientation, voids, interlayer bonding, and repeatability must be measured before they are used in critical mechanical assemblies.
Limits, risks and end-of-life issues
Composites bring real engineering benefits, but they also introduce constraints that are easy to underestimate. Cost is the most visible one. Carbon fiber composites can be expensive not only because of material price, but also because of tooling, labor, cure time, inspection, and scrap handling. Even glass fiber composites, while more economical, may not compete with stamped steel or die-cast aluminum in high-volume applications unless integration or corrosion resistance offsets the cost.
Repair is another limitation. A dent in a metal panel may be visible and locally repairable. Composite damage can be internal, and repair quality depends on surface preparation, scarf geometry, adhesive control, curing, and inspection. In safety-critical systems, repair procedures must be qualified rather than improvised.
Recycling remains a major issue, especially for thermoset fiber-reinforced composites. Recent review literature describes mechanical, thermal, and chemical recycling routes, while noting barriers such as high cost, loss of material properties, and limited markets for recycled material. (doi.org) Thermoplastic composites may improve recyclability because the matrix can be remelted or reshaped, but they still require careful processing to preserve fiber value and mechanical performance.
There are also design risks around fire behavior, smoke and toxicity, galvanic corrosion when carbon fiber contacts certain metals, creep under sustained load, surface wear, ultraviolet exposure, and quality variation between suppliers. These risks do not rule out composites. They mean engineers should evaluate the full system rather than compare material datasheets in isolation.
A practical selection framework for engineers
A useful way to decide whether a composite material belongs in a mechanical design is to start with the function rather than the material. The following questions help separate strong applications from weak ones:
- Is weight reduction valuable at the system level? If lower mass improves energy use, speed, payload, or operator handling, composites deserve consideration.
- Is the load path predictable? Composites perform best when fiber directions can be aligned with known loads.
- Can the operating environment be controlled or qualified? Temperature, moisture, chemicals, abrasion, and impact exposure must be realistic.
- Can the manufacturing process be repeated? A prototype laminate is not enough; production variation must be understood.
- How will the part be inspected and repaired? Non-destructive inspection and repair procedures should be part of the design plan.
- What happens at end of life? Reuse, repair, recycling, or disposal should be considered before material selection is frozen.
The most practical conclusion is cautious but positive. Composite materials are not replacing metals across all of mechanical engineering. They are becoming normal engineering options in applications where tailored properties create measurable value. The best results come when material selection, laminate design, manufacturing, testing, joining, inspection, and end-of-life planning are treated as one connected engineering problem.
Frequently asked questions
What is the main application of composite materials in mechanical engineering?
The main application is lightweight structural design. Composites are used where engineers need high strength or stiffness relative to weight, corrosion resistance, fatigue performance, or the ability to tailor properties along specific load directions.
Are composite materials stronger than steel?
Some composites have higher specific strength than steel, meaning they can be strong for their weight. However, steel may still be stronger, tougher, cheaper, easier to join, or more predictable in many applications. The better material depends on loading direction, environment, cost, and safety requirements.
Why are carbon fiber composites expensive?
Carbon fiber composites are costly because of fiber production, resin systems, controlled layup, curing, tooling, inspection, and skilled labor. In many industrial designs, glass fiber composites or hybrid structures may provide a better balance of cost and performance.
Can composite materials be used for gears and shafts?
Yes, but selectively. Composite shafts can reduce rotating mass and tune torsional behavior, while polymer composite gears can reduce noise and resist corrosion in moderate-load conditions. High temperature, tooth contact stress, wear, and long-term creep must be checked carefully.
What is the biggest limitation of composite materials?
The biggest limitation is not one single property. It is the combination of anisotropic behavior, manufacturing variability, inspection difficulty, repair complexity, and recycling challenges. Successful use requires engineering controls across the full product life cycle.
